S O R T I N G

High-Performance solutions for sorting and recycling applications



Equipment from rice sorters to ewaste sorters use the ultra fast response valves to enhance their reliability and maintenance free performance.

We provides the manifold with varied choice of air valves – preassembled to cut down on machine manufacturing time. These pretested Manifolds are essentially plug n' play and save a lot of time and expense.

The configurations are many and the nozzle pitch can be as low as 6 mm. The valves are the same ultra high speed valves with response times of <1 mS. The flow rates can be as low as 30 LPM to 1600 LPM depending on choice of valves and application. Pressure ranges from 0 to 8 bar.

Electrical connections as well as manifolds can be custom made for high volume OEM customers. These systems are proven in the field over the years and are as versatile as they are long lasting.

Download
sorting.pdf
Documento Adobe Acrobat 1.6 MB
Download
Sorting 2 .pdf
Documento Adobe Acrobat 1.7 MB

HIGH PERFORMANCE VALVES

SERIE 320

Kompaut, valvole alta velocità

SERIE 750

kOMPAUT, elettrovalvole ad alta velocità

SERIE 840

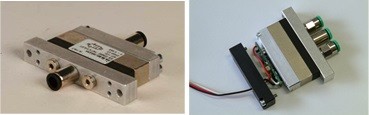

Kompaut high performance valve for sorting

SERIE 860

Kompaut  high performance valve for sorting

SERIE 890

HIGH SPEED VALVES - SERIES 721

Download
SERIE 721.pdf
Documento Adobe Acrobat 3.8 MB
Kompaut, elettrovalvole, valvole, alta velocità, alto numero di cicli, elettrovalvole multifunzione, per aria, fluidi, 5 vie, 3 vie, Hz,
Kompaut, elettrovalvole, valvole, alta velocità, alto numero di cicli, elettrovalvole multifunzione, per aria, fluidi, 5 vie, 3 vie, Hz,
Kompaut, elettrovalvole, valvole, alta velocità, alto numero di cicli, elettrovalvole multifunzione, per aria, fluidi, 5 vie, 3 vie, Hz,

The Pneumatic Solenoid Valves 720 Series are available in both NC and NO version. They include all innovations, which are present in solenoid valves, both in materials and operating principles.
They couple simplicity and reliability with high dynamic performance. Response times are of milliseconds range, while their operating life is over 500 million cycles. The Series comprises Vacuum versions designed for uses with vacuum technique.
Due to the facility to be speed-up controlled,dynamic characteristics become even more improved: standard solenoid valves equipped with 24 VDC control present response times lower than 5 ms in opening and 2 ms in closing, with a maximum operation frequency 200 Hz. On the contrary, solenoid valves equipped with speed-up control present a response time both in opening and closing lower than 2 ms, with a maximum operation frequency 300 Hz.
Besides high-speed characteristics, solenoid valves 720 Series offer flow rate value to 100 l/minute (ANR), with supply pressure from 0 to 8 bar.
720 Series is available both in line assembly version and on sub-plate and is equipped with a range of accessories such as multi-position manifolds and speed-up driver boards.

  Advantages

- Compact dimension

- High duct diameter and flow rate
- Short response times
- Insensitivity to frequency work and to vibrations
- Low absorbed power
- Precision, repetitiveness and flexibility
- Long operating life

  Applications

- Process and precision instrumentation

- Pressure and flow rate control devices
- Positioning systems
- Selection systems
- Metering systems
- Biomedical and measure sector
- Industrial automation
